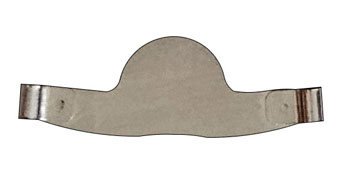

Saddle Metal Matrices and Accessories for Installation


N 1.301
Saddle Metal Matrices small
12 pcs.

All matrices are available of two thicknesses - 0,050 mm and 0,035 mm. Specify, please, the necessary type, e.g., 1.301 - 0,035 mm, otherwise you' ll receive matrices of the first type, i.e. 0,050 mm.

There are matrices of 3 shapes:

shape 1 - standard
shape 2 - with adjustable central part
shape 3 - with enlarged sub-gingival ledge

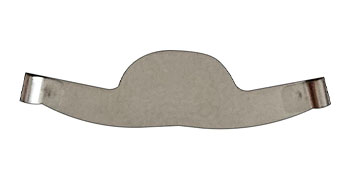

N 1.302
Saddle Metal Matrices medium
12 pcs.

All matrices are available of two thicknesses - 0,050 mm and 0,035 mm. Specify, please, the necessary type, e.g., 1.302 - 0,035 mm, otherwise you' ll receive matrices of the first type, i.e. 0,050 mm.

There are matrices of 3 shapes:

shape 1 - standard
shape 2 - with adjustable central part
shape 3 - with enlarged sub-gingival ledge

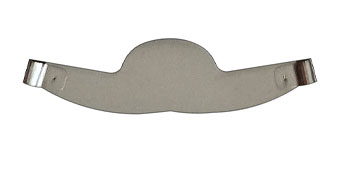

N 1.303
Saddle Metal Matrices large
12 pcs.

All matrices are available of two thicknesses - 0,050 mm and 0,035 mm. Specify, please, the necessary type, e.g., 1.303 - 0,035 mm, otherwise you' ll receive matrices of the first type, i.e. 0,050 mm.

There are matrices of 3 shapes:

shape 1 - standard
shape 2 - with adjustable central part
shape 3 - with enlarged sub-gingival ledge
N 1.311
Saddle Contoured Metal Matrices small
12 pcs.

All matrices are available of two thicknesses - 0,050 mm and 0,035 mm. Specify, please, the necessary type, e.g., 1.311 - 0,035 mm, otherwise you' ll receive matrices of the first type, i.e. 0,050 mm.

There are matrices of 4 shapes:

shape 1 - standard
shape 2 - with adjustable central part
shape 3 - with enlarged sub-gingival ledge
new

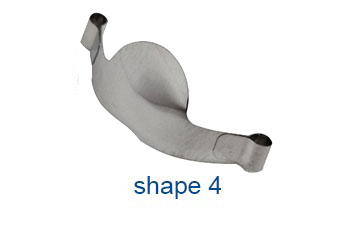

shape 4 - with narrowed edges

The tubes at the edges of the matrices of shape 4 are 2 mm high, being 2 times lower than that of matrices of shapes 1 - 3. The lower tubes of the shape 4 matrix allow to place matrix on a low crown and move it around the tooth without touching the gum.

N 1.312
Saddle Contoured Metal Matrices medium
12 pcs.

All matrices are available of two thicknesses - 0,050 mm and 0,035 mm. Specify, please, the necessary type, e.g., 1.312 - 0,035 mm, otherwise you' ll receive matrices of the first type, i.e. 0,050 mm.

There are matrices of 4 shapes:

shape 1 - standard
shape 2 - with adjustable central part
shape 3 - with enlarged sub-gingival ledge
new

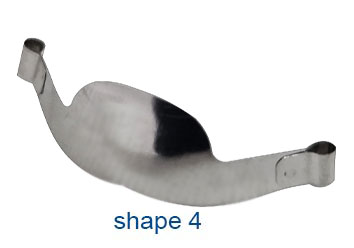

shape 4 - with narrowed edges

The tubes at the edges of the matrices of shape 4 are 2 mm high, being 2 times lower than that of matrices of shapes 1 - 3. The lower tubes of the shape 4 matrix allow to place matrix on a low crown and move it around the tooth without touching the gum.

N 1.313
Saddle Contoured Metal Matrices large
12 pcs.

All matrices are available of two thicknesses - 0,050 mm and 0,035 mm. Specify, please, the necessary type, e.g., 1.313 - 0,035 mm, otherwise you' ll receive matrices of the first type, i.e. 0,050 mm.

There are matrices of 4 shapes:

shape 1 - standard
shape 2 - with adjustable central part
shape 3 - with enlarged sub-gingival ledge
new

shape 4 - with narrowed edges

The tubes at the edges of the matrices of shape 4 are 2 mm high, being 2 times lower than that of matrices of shapes 1 - 3. The lower tubes of the shape 4 matrix allow to place matrix on a low crown and move it around the tooth without touching the gum.

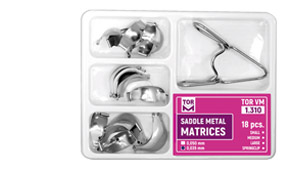

N 1.310
Saddle Metal Matrices.
18 pcs.:

small № 1.311(1) - 6 pcs.,
medium № 1.312(1) - 6 pcs.,
large № 1.313(1) - 6 pcs.,
small springclip № 1.003 - 1 pc.

Matrices are available of two thicknesses - 0,050 mm and 0,035 mm.
Specify, please, the necessary type, e.g., 1.310 - 0,035 mm, otherwise you' ll receive matrices of the first type, i.e. 0,050 mm.

N 1.320
Saddle Metal Matrices.
18 pcs.:

small № 1.311(1) - 6 pcs.,
medium № 1.312(1) - 6 pcs.,
large № 1.313(1) - 6 pcs.,
ring № 1.033 - 1 pc.

Matrices are available of two thicknesses - 0,050 mm and 0,035 mm.
Specify, please, the necessary type, e.g., 1.320 - 0,035 mm, otherwise you' ll receive matrices of the first type, i.e. 0,050 mm.

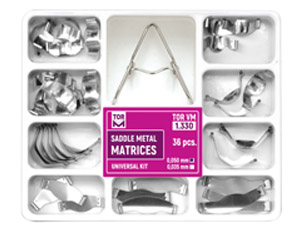

N 1.330
Saddle Metal Matrices.
Universal Kit
36 pcs.:

small № 1.301(1) - 3 pcs.,
medium № 1.302(1) - 3 pcs.,
large № 1.303(1) - 3 pcs.,
small № 1.311(1) - 6 pcs.,
medium № 1.312(1) - 6 pcs.,
large № 1.313(1) - 6 pcs.,
small № 1.311(2) - 2 pcs.,
medium № 1.312(2) - 2 pcs.,
large № 1.313(2) - 2 pcs.,
small № 1.311(3) - 1 pcs.,
medium № 1.312(3) - 1 pcs.,
large № 1.313(3) - 1 pcs.,
small springclip № 1.003 - 1 pc.

There are matrices of 2 thicknesses:
• 0,050 mm
• 0,035 mm

Specify, please, the necessary type, e.g., 1.330 - 0,035 mm, otherwise you' ll receive matrices of the first type, i.e. 0,050 mm.





N 1.005 Springclip for saddle matrices,
large
1 pc.
N 1.003 Springclip for saddle matrices
small
1 pc.
N 1.033 Ring for saddle matrices.

1 pc.
N 1.033c Ring for saddle matrices,
with silicone safety cover
1 pc.
N 1.033A Ring for saddle matrices

1 pc.

WARNING!!!
When operating with ring:
1) make sure of integrity of the ring and absence of rust on it;
2) avoid high-speed opening;
3) open the ring for width not more than 10 - 12 mm;
4) open the ring for necessary width outside the mouth before placing it on a tooth.



Cleaning and sterilization instructions:


1) Submerge instruments in cleaning agent solution with neutral pH for 20 min;
2) Rinse the instruments thoroughly with purified water for 3-5 min;
3) Perform standard moist heat / steam sterilization procedure following the sterilizer instructions.
WARNING!!!
1) Do not use cleaning agents with high percentage of chlorine and cleaners containing oxalic acid;
2) Do not keep instruments in liquid medium for more than 3 hours.
