Do-All Proxicut System:

№ 1.384(1)
Proxicut Saw Blades

0,05 mm thick, 30 mm long
12 pcs.
№ 1.385К(1)
Proxicut Diamond Strips

coarse
30 mm long
12 pcs.
№ 1.385С(1)
Proxicut Diamond Strips

medium
30 mm long
12 pcs.
№ 1.385М(1)
Proxicut Diamond Strips

fine
30 mm long
12 pcs.
№ 1.369
Do-All Proxicut Holder

holder with key
1 pc.

Key can be supplied in 2 different shapes.

Holder can be operated by itself or with handles №№ 1.107 or 1.109 or any other handpiece of EVE type providing to-and-fro motion.

№ 1.107
Handle

1 pc.

Rotating front edge of the handle provides fixation of do-all proxicut holder under various angles (7 operating positions are possible).

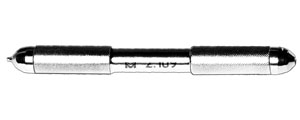

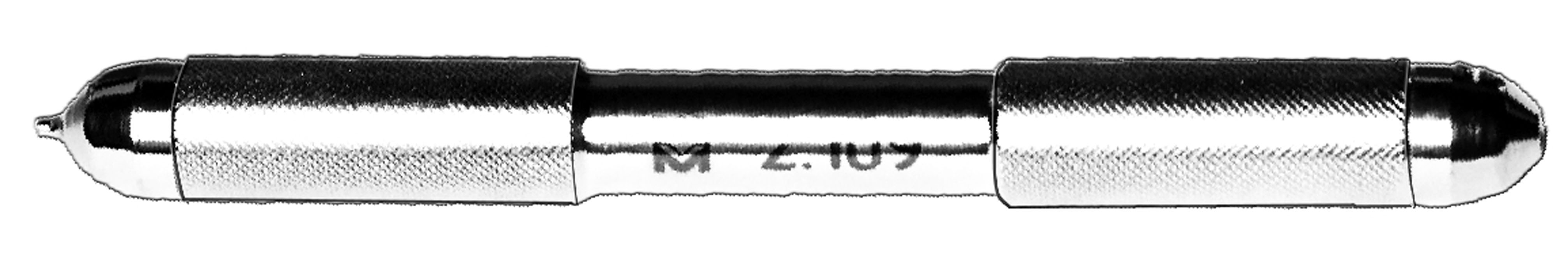

№ 1.109
Handle

1 pc.

Holes in the handle allow to fix do-all proxicut holder under various angle.

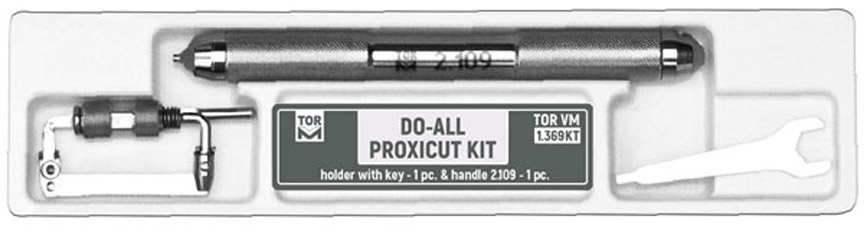

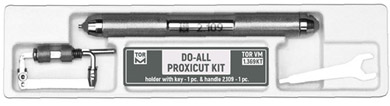

№ 1.369KT
Do-All Proxicut Kit

holder with key - 1 pc.
handle № 1.109 - 1 pc.

Key can be supplied in 2 different shapes.

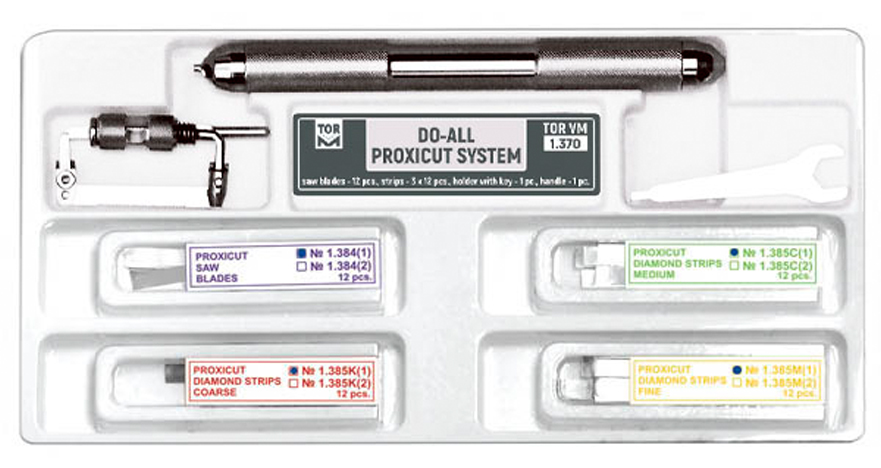

№ 1.370
Do-All Proxicut System

proxicut saw blades № 1.384(1) - 12 pcs.
proxicut diamond strips (coarse) № 1.385К(1) - 12 pcs.
proxicut diamond strips (medium) № 1.385С(1) - 12 pcs.
proxicut diamond strips (fine) № 1.385М(1) - 12 pcs.
do-all proxicut holder with key № 1.369 - 1 pc.
handle № 1.109 - 1 pc.

Key can be supplied in 2 different shapes.

DO-ALL PROXICUT SYSTEM - HOW TO OPERATE

Rotate screw handle 1 to move closer legs of do-all proxicut holder so that the distance between outer sides of holder legs becomes equal to the length of the blade (trip).
Insert the blade (strip) in gripes 2 of holder legs and tighten the gripes with key 3.
Rotate screw handle 1 to tighten the blade (strip) between holder legs.
Modes of holder - handle fixation:
with handle № 1.107
with handle 1.109
Do-all proxicut holder can also be operated without handle or fixed in EVE-type hand piece providing to-and-fro motion.

Proxicut System:

№ 1.384(2)
Proxicut Saw Blades

0,05 mm thick, 32 mm long
12 pcs.
№ 1.385К(2)
Proxicut Diamond Strips

coarse
32 mm long
12 pcs.
№ 1.385С(2)
Proxicut Diamond Strips

medium
32 mm long
12 pcs.
№ 1.385М(2)
Proxicut Diamond Strips

fine
32 mm long
12 pcs.



№ 1.389
Proxicut Holder

1 pc.



PROXICUT SYSTEM - HOW TO OPERATE

Insert finger of leg 1 of the proxicut holder into the hole of saw blade (diamond strip) 4 and bend the blade (strip) 4 around leg 1 of the proxicut holder.
Bend the blade (strip) 4 around leg 1 of the proxicut holder, insert finger on leg 2 of the proxicut holder in another hole of the the blade (strip) 4.
Rotate screw handle 3 of the holder to tighten up the blade (strip) between legs 1 and 2 of the holder.
Remove excess filling material by rocking motion of the blade (strip) 4 within inter-proximal space.
