Contact & Shape Formers:

№ 1.1901
Contact Former

1 pc.
№ 1.1902
Contact Former

1 pc.
№ 1.1904
Contact Former

1 pc.
№ 1.943
Contact Former

1 pc.
№ 1.863
Shape Former Caps

10 pcs.

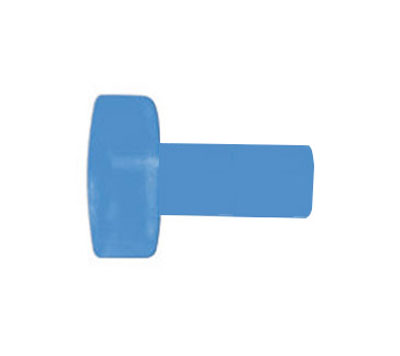

№ 1.867
Shape Former Caps

10 pcs.

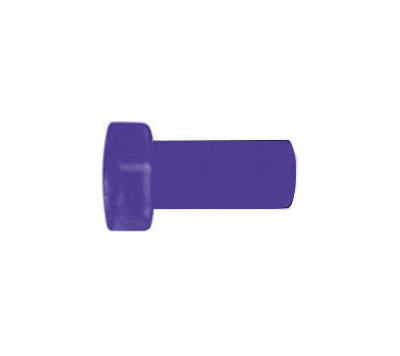

№ 1.868
Shape Former Caps

10 pcs.

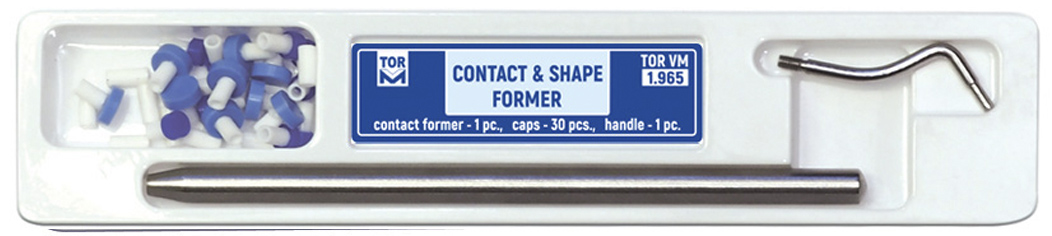

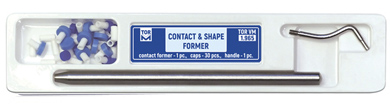

№ 1.965
Contact & Shape Former

• contact former № 1.943 - 1 pc.
• shape former caps № 1.863 - 10 pcs.
• shape former caps № 1.867 - 10 pcs.
• shape former caps № 1.868 - 10 pcs.

1) Perform adhesive preparation of the tooth

2) Apply a layer 1 of 0,3-0,5 mm of flowable composite on the prepared surface excluding gingival area and perform photopolymerization

3) Prepare globule 2 from universal composite a bit smaller in size than contact area cavity (area 3) and perform its photopolymerization

4) Apply a thin layer 4 of flowable composite on gingival area – DO NOT PERFORM PHOTOPOLYMERIZATION!

5) Fill contact area cavity 3 with universal composite 5 approximately up to the contact point – DO NOT PERFORM PHOTOPOLYMERIZATION!

6) Place globule 2 into the cavity 3 and using contact former 6 press the globule towards matrix and the neighbor tooth

7) Perform photopolymerization in 2 stages: 1 - the globule 2 being pressed by contact former 6, 2 – contact former 6 being removed from the mouth

8) Restore grinding surface of the tooth

9) Force matrix from the side slopes of the tooth and preform photopolymerization once more directing light on gingival area from the side of facial and lingual surfaces

10) Remove matrix and wedge

11) Finish the restoration

12) Check contact the state of contact surfaces and contact point location and density with floss

Shape former modes

Tooth cusp modelling of molars & premolars
Facial surface modelling of anteriors
